CELOspArk® Zinc plated screw, Countersunk head TORX®

For an optimal direct assembly of ductile plastics.

CELOspArk® screw with an improved 30º thread design solves the problem of boss bursting and provides greater safety in the assembly process into ductile plastics.

It provides lower thread forming torque for a more ergonomic assembly and higher pull-out, stripping and vibrational loosening resistant .

Apart from the reference available in stock, we produce customized screws under different dimensions and coating configurations.

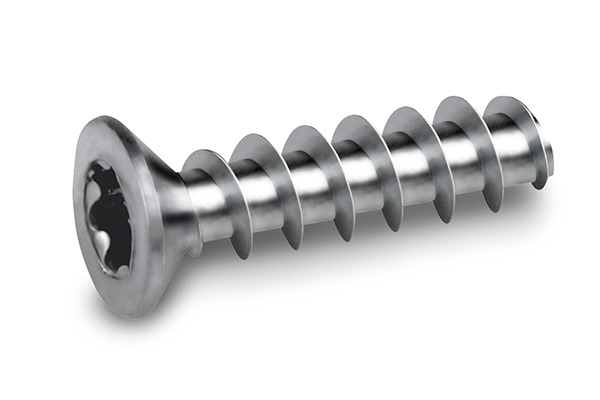

celospark-sp82t

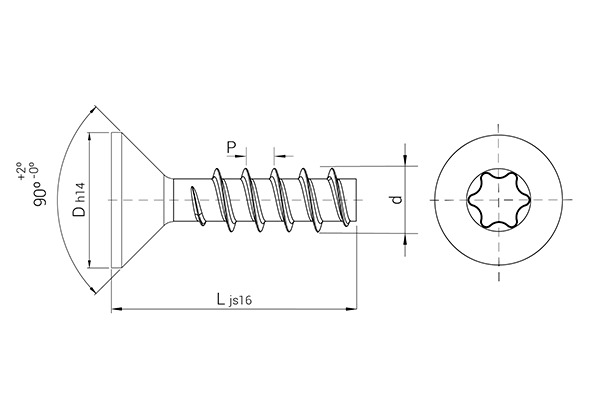

celospark-sp82t-screw-drawing
celospark-sp82t
celospark-sp82t-screw-drawing
Filter by:
Reference
36SP82T shopping_cart 3.0 6 6.00 TORX® T10
38SP82T shopping_cart 3.0 8 6.00 TORX® T10
312SP82T shopping_cart 3.0 12 6.00 TORX® T10
316SP82T shopping_cart 3.0 16 6.00 TORX® T10
3510SP82T shopping_cart 3.5 10 7.00 TORX® T15
3512SP82T shopping_cart 3.5 12 7.00 TORX® T15
412SP82T shopping_cart 4.0 12 8.00 TORX® T20
416SP82T shopping_cart 4.0 16 8.00 TORX® T20
boss-design-plastic

In order to ensure a safe installation and stable clamping force, it's relevant to pay attention to the boss design. The recommended dimensions for core hole diameter and length of engagement are available at Design Guidelines.

Go to Design Guidelines
celospark-screw-application

CELOspArk® screw is recommended for the assembly of ductile plastics. The design of CELOspArk® screws meet the standards of a large number of electric material, electronics and automotive manufacturers (i.e. VW 603 62).
