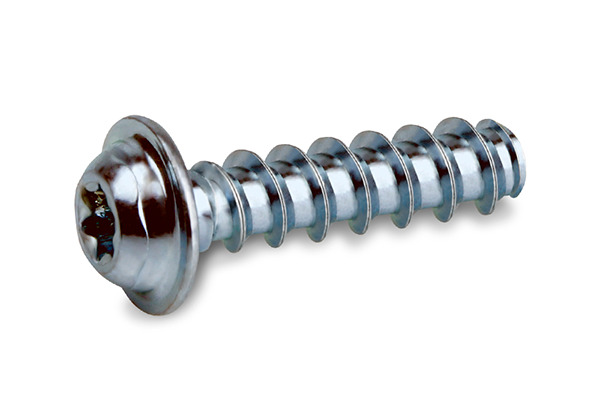

REMFORM® Zinc plated screw, Pan head flange TORX®

The most efficient solution for plastic assemblies with high mechanical requirements

REMFORM® thread-forming screws offer a more resistant, secure and ergonomic assembly, while offering great savings on in-place fastening costs.

Unique asymmetric thread form is the main feature of REMFORM® screws and provides important benefits: less radial deformation on the plastic reduces risk of boss bursting, very low thread forming torque values offers ergonomic assembly, strong pull-out resistance, higher breaking torque which allows for higher assembly torque, and high resistance to vibration loosening and stripping.

Apart from the references available in stock, we produce customised screws to fit your exact requirements.

remform-rf87t

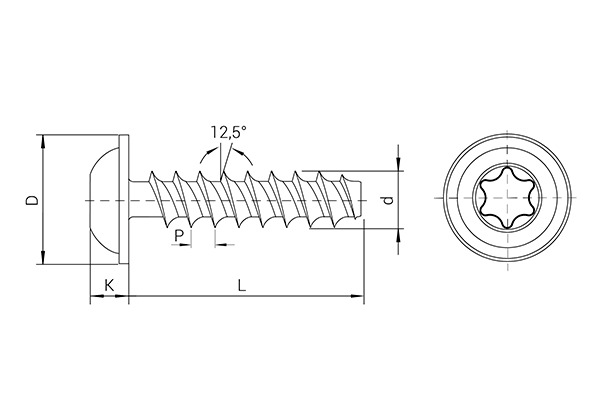

remform-rf87t-screw-drawing
remform-rf87t
remform-rf87t-screw-drawing
Filter by:
Reference
36RF87T shopping_cart 3.0 6 6.24 TORX® T10
38RF87T shopping_cart 3.0 8 6.24 TORX® T10
310RF87T shopping_cart 3.0 10 6.24 TORX® T10
312RF87T shopping_cart 3.0 12 6.24 TORX® T10
412RF87T shopping_cart 4.0 12 8.29 TORX® T20
416RF87T shopping_cart 4.0 16 8.29 TORX® T20
420RF87T shopping_cart 4.0 20 8.29 TORX® T20
520RF87T shopping_cart 5.0 20 10.29 TORX® T20
615RF87T shopping_cart 6.0 15 12.35 TORX® T25
620RF87T shopping_cart 6.0 20 12.35 TORX® T25
630RF87T shopping_cart 6.0 30 12.35 TORX® T25
638RF87T shopping_cart 6.0 38 12.35 TORX® T25
boss-design-plastic

In order to ensure a safe installation and stable clamping force, it's relevant to pay attention to the boss design. The recommended dimensions for core hole diameter and length of engagement are available at Design Guidelines.

Go to Design Guidelines
remform-screw-application

REMFORM® screws are recommended in assemblies that require: High pull-out resistance. High resistance to vibration loosening.
