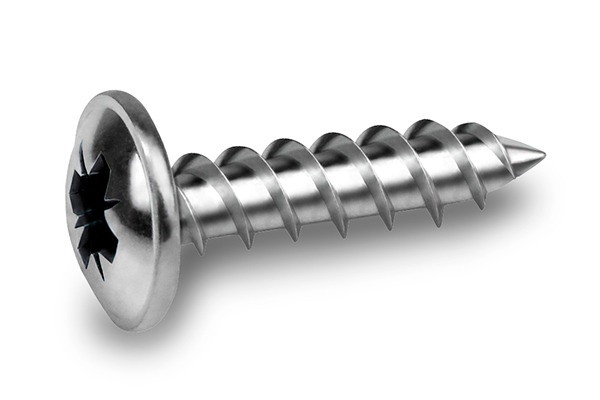

TWINPLAST Zinc plated screw, Pan head flange POZI , CUT-OFF point

For the assembly on very thin plastic elements, especially blown plastic parts.
TWINPLAST Zinc plated screw, Pan head flange POZI , CUT-OFF point
TWINPLAST Zinc plated screw, Pan head flange POZI , CUT-OFF point

Product overview

TWINPLAST thread design and the sharp point allow the screw to be inserted without pilot holes or boss. It can be used when plastic thickness is between 1/3 and 2/3 of the screw diameter.

Apart from the references available in stock, we produce customized screws to fit your exact requirements.

Samples
3D CAD Files
Quotation

List of references

Filters

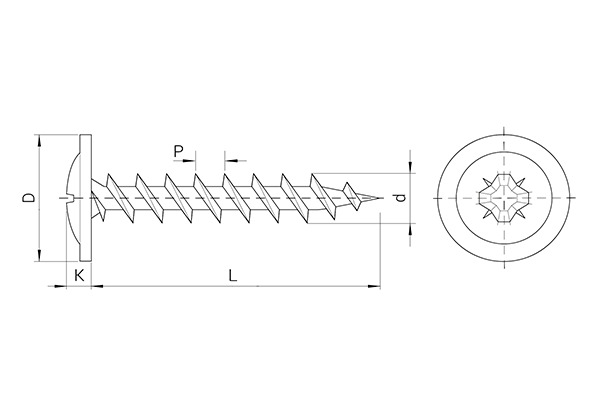

Screw diameter (mm)
3.0
3.5
4.0
4.5
Close
Screw length L (mm)
10
12
16
19
Close
Head diameter D (mm)
5.60
7.00
7.50
8.20
Close
Recess
POZI Z1
POZI Z2
Close
Reference
J
d
310TP88Z
3512TP88Z
416TP88Z
4519TP88Z
Screw diameter (mm)
J
d
3.0
3.5
4.0
4.5
Screw length L (mm)
J
d
10
12
16
19
Head diameter D (mm)
J
d
5.60
7.00
7.50
8.20
Recess
J
d
POZI Z1
POZI Z2
POZI Z2
POZI Z2
4 / 4 references are shown

Applications

TWINPLAST screws are recommended for the assembly of very thin plastic elements, especially blown plastic parts.
https://www.celofasteners.com/img/cms/category-products/plastic/twinplast-screw.jpg
