CELOspArk® Zinc plated screw, Pan head POZI

For an optimal direct assembly of ductile plastics.

CELOspArk® screw with an improved 30º thread design solves the problem of boss bursting and provides greater safety in the assembly process into ductile plastics.

It provides lower thread forming torque for a more ergonomic assembly and higher pull-out, stripping and vibrational loosening resistant .

Apart from the reference available in stock, we produce customized screws under different dimensions and coating configurations.

celospark-sp81z

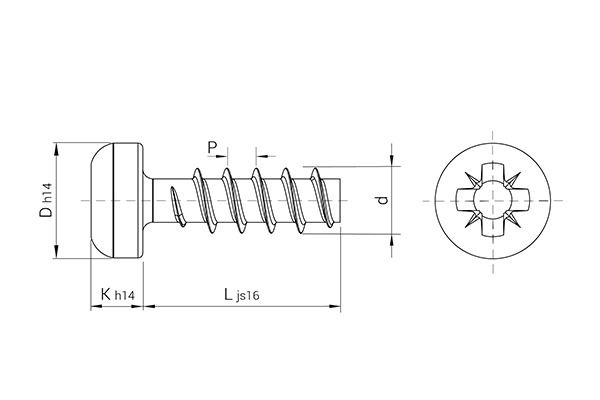

celospark-sp81z-screw-drawing
celospark-sp81z
celospark-sp81z-screw-drawing
Filter by:
Reference
236SP81Z 2.3 6 3.90 POZI Z1
238SP81Z shopping_cart 2.3 8 3.90 POZI Z1
2310SP81Z 2.3 10 3.90 POZI Z1
2312SP81Z shopping_cart 2.3 12 3.90 POZI Z1
256SP81Z shopping_cart 2.5 6 4.30 POZI Z1
258SP81Z shopping_cart 2.5 8 4.30 POZI Z1
2510SP81Z 2.5 10 4.30 POZI Z1
2512SP81Z 2.5 12 4.30 POZI Z1
2516SP81Z shopping_cart 2.5 16 4.30 POZI Z1
36SP81Z shopping_cart 3.0 6 5.30 POZI Z1
38SP81Z shopping_cart 3.0 8 5.30 POZI Z1
310SP81Z shopping_cart 3.0 10 5.30 POZI Z1
312SP81Z shopping_cart 3.0 12 5.30 POZI Z1
316SP81Z shopping_cart 3.0 16 5.30 POZI Z1
318SP81Z shopping_cart 3.0 18 5.30 POZI Z1
320SP81Z 3.0 20 5.30 POZI Z1
358SP81Z 3.5 8 6.20 POZI Z2
3510SP81Z 3.5 10 6.20 POZI Z2
3512SP81Z 3.5 12 6.20 POZI Z2
3513SP81Z 3.5 13 6.20 POZI Z2
3516SP81Z 3.5 16 6.20 POZI Z2
3520SP81Z 3.5 20 6.20 POZI Z2
410SP81Z 4.0 10 7.00 POZI Z2
412SP81Z 4.0 12 7.00 POZI Z2
416SP81Z 4.0 16 7.00 POZI Z2
420SP81Z 4.0 20 7.00 POZI Z2
422SP81Z 4.0 22 7.00 POZI Z2
425SP81Z 4.0 25 7.00 POZI Z2
430SP81Z 4.0 30 7.00 POZI Z2
4516SP81Z 4.5 16 7.50 POZI Z2
4520SP81Z 4.5 20 7.50 POZI Z2
516SP81Z 5.0 16 9.00 POZI Z2
520SP81Z 5.0 20 9.00 POZI Z2
530SP81Z 5.0 30 9.00 POZI Z2
630SP81Z 6.0 30 10.80 POZI Z3
boss-design-plastic

In order to ensure a safe installation and stable clamping force, it's relevant to pay attention to the boss design. The recommended dimensions for core hole diameter and length of engagement are available at Design Guidelines.

Go to Design Guidelines
celospark-screw-application

CELOspArk® screw is recommended for the assembly of ductile plastics. The design of CELOspArk® screws meet the standards of a large number of electric material, electronics and automotive manufacturers (i.e. VW 603 62).
