FASTITE® 2000™ Zinc plated screw, Pan head with serrations TORX®

The best cost-effective solution for JOINING THIN METAL SHEET

FASTITE® 2000™ screws solve common fastening problems when joining thin metal sheet, assuring clamping force and stripping resistance whilst offering opportunities for cost reduction.

The unique FASTITE® 2000™ thread rolling screws are the best cost-effective solution when joining steel and aluminum thin sheets with untapped holes. It offers a strong mechanical joint with excellent pull-out and vibration loosening resistance.

Apart from the references available in stock, CELO produces customised screws to fit your exact requirements.

fastite2000-ft85t

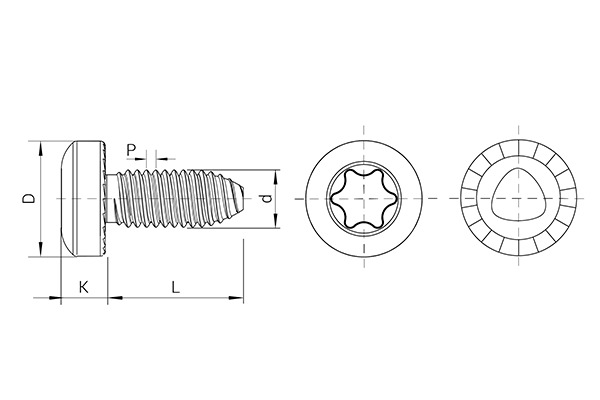

fastite2000-ft85t-screw-drawing
fastite2000-ft85t
fastite2000-ft85t-screw-drawing
Filter by:
Reference
36FT85T 3.0 6 6.00 TORX® T10
46FT85T 4.0 6 8.00 TORX® T20
47FT85T 4.0 7 8.00 TORX® T20
412FT85T 4.0 12 8.00 TORX® T20
59FT85T 5.0 9 10.00 TORX® T25
512FT85T 5.0 12 10.00 TORX® T25
612FT85T 6.0 12 12.00 TORX® T30

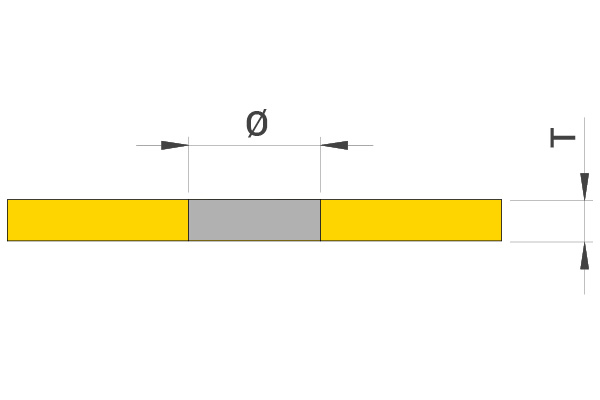

boss-design-thin-metal-screws

In order to ensure a safe installation and stable mechanical resistance, it's relevant to pay attention to the pilot hole diameter. The recommended dimensions for pilot hole diameter for different plate thickness are available at Design Guidelines.

Go to Design Guidelines

FASTITE® 2000™ screws have been specially designed for the assembly into untapped thin aluminum and steel sheets. FASTITE® 2000™ screws are the best alternative to self-tapping screws: unthreaded length below the head is larger than the thickness of the assembly, causing the screw to clip the sheet.
