REMFORM® II F™ Zinc plated screw, Pan head flange TORX PLUS® AUTOSERT®

For the assembly of very hard plastic thermoset materials, Magnesium and Aluminum light alloys.

REMFORM® II F™ thread forming screws are specially designed for the assembly of very hard plastics, thermoset, Magnesium, Aluminum light alloy and other non-ferrous materials including copper, brass, etc.

The smaller pitch of REMFORM® II F™ screws provides larger shearing zone, increasing pull-out and vibrational loosening resistance.

Apart from the references available in stock, we produce customised screws to fit your exact requirements. Contact us

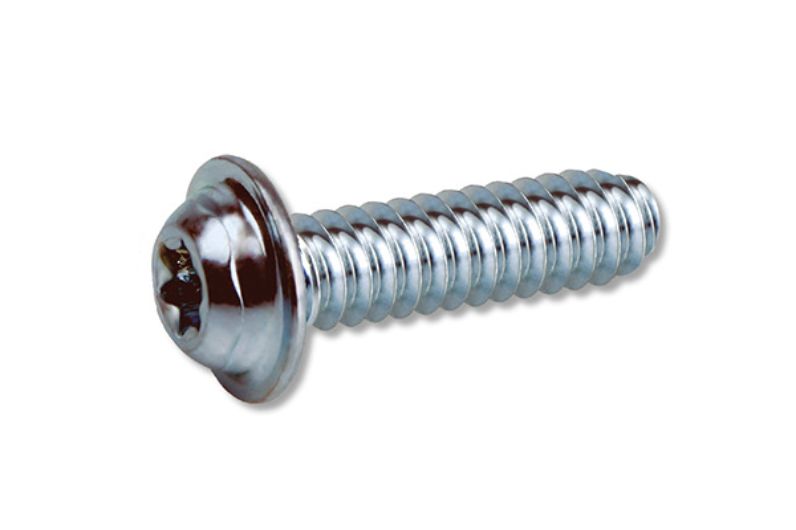

remform-ii-f-f287pa

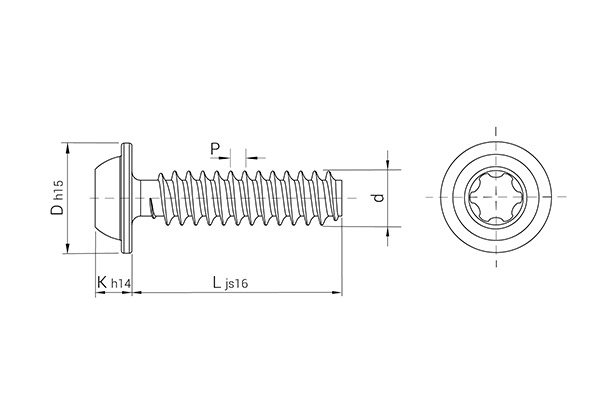

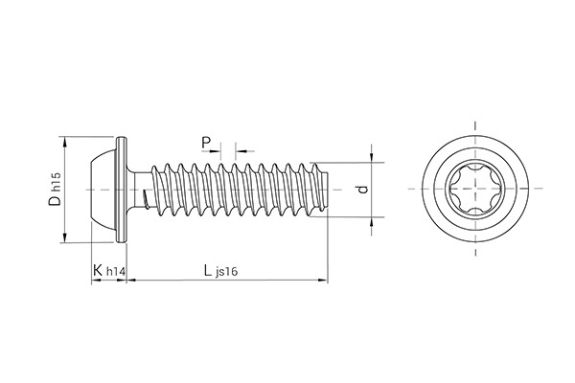

remform-ii-f-f287pa-screw-drawing
remform-ii-f-f287pa

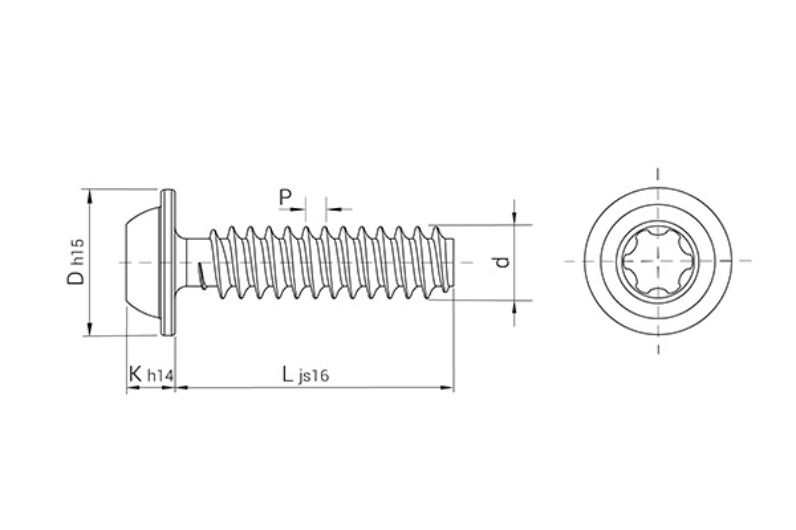

remform-ii-f-f287pa-screw-drawing
Filter by:
Reference
26F287PA 2.0 6 4.30 TORX PLUS® AUTOSERT® 6 IP
28F287PA 2.0 8 4.30 TORX PLUS® AUTOSERT® 6 IP
210F287PA 2.0 10 4.30 TORX PLUS® AUTOSERT® 6 IP
258F287PA 2.5 8 5.30 TORX PLUS® AUTOSERT® 8 IP
2510F287PA 2.5 10 5.30 TORX PLUS® AUTOSERT® 8 IP
36F287PA 3.0 6 6.30 TORX PLUS® AUTOSERT® 10 IP
38F287PA 3.0 8 6.30 TORX PLUS® AUTOSERT® 10 IP
310F287PA 3.0 10 6.30 TORX PLUS® AUTOSERT® 10 IP
312F287PA 3.0 12 6.30 TORX PLUS® AUTOSERT® 10 IP
314F287PA 3.0 14 6.30 TORX PLUS® AUTOSERT® 10 IP
3510F287PA 3.5 10 7.30 TORX PLUS® AUTOSERT® 15 IP
410F287PA 4.0 10 8.30 TORX PLUS® AUTOSERT® 20 IP
boss-design-plastic

In order to ensure a safe installation and stable clamping force, it's relevant to pay attention to the pilot hole configuration. The recommended dimensions for core hole diameter and length of engagement are available at Design Guidelines.

Go to Design Guidelines

REMFORM® II F™ screws are recommended for the assembly of: Highly reinforced plastics and thermoplastic parts in applications where the length of engagement is lower than optimal. Magnesium elements with drilled, injected or punched holes. Aluminum profiles with open holes.
