REMFORM® Zinc plated screw, Pan head TORX PLUS®

The most efficient solution for plastic assemblies with high mechanical requirements

REMFORM® thread-forming screws offer a more resistant, secure and ergonomic assembly, while offering great savings on in-place fastening costs.

Unique asymmetric thread form is the main feature of REMFORM® screws and provides important benefits: less radial deformation on the plastic reduces risk of boss bursting, very low thread forming torque values offers ergonomic assembly, strong pull-out resistance, higher breaking torque which allows for higher assembly torque, and high resistance to vibration loosening and stripping.

Apart from the references available in stock, we produce customised screws to fit your exact requirements.

remform-rf81tp

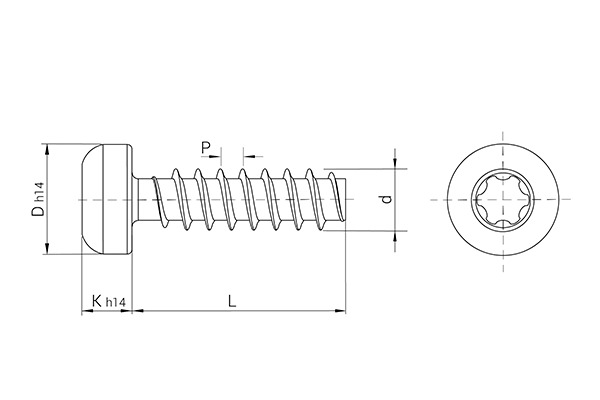

remform-ii-hs-rhs81p-screw-drawing
remform-rf81tp
remform-ii-hs-rhs81p-screw-drawing
Filter by:
Reference
186RF81TP 1.8 6 3.20 TORX PLUS® 5 IP
258RF81TP 2.5 8 4.20 TORX PLUS® 7 IP
boss-design-plastic

In order to ensure a safe installation and stable clamping force, it's relevant to pay attention to the boss design. The recommended dimensions for core hole diameter and length of engagement are available at Design Guidelines.

Go to Design Guidelines
remform-screw-application

REMFORM® screws are recommended in assemblies that require: High pull-out resistance. High resistance to vibration loosening.
