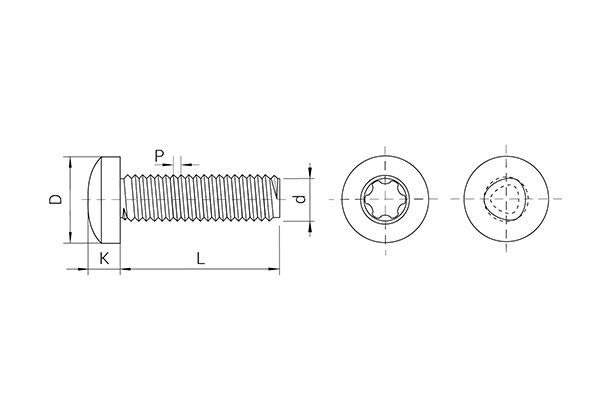

Screw diameter (mm)
2.5
Screw length L (mm)
8
Tolerance L (mm)
±0.3
Head diameter D (mm)
5.00
Tolerance D (mm)
0 -0.30
Head height K (mm)
2.00
Tolerance K (mm)
0 -0.14
Recess
TORX PLUS® AUTOSERT® 8 IP
Breaking torque (Nm)
1.00
Core hardness (HV)
327-382
Surface hardness (HV)
min. 336
Units per bag
5000
Outer box units
20000
GTIN
8425586586526
Weight (kg/th)
0.434
Thread pitch P (mm)
0.45
In order to ensure a safe installation and stable clamping force, it's relevant to pay attention to the pilot hole diameter. The recommended dimensions for core hole diameter and length of engagement are available at Design Guidelines.
