TAPTITE II® Zinc plated screw, Pan head conical washer, TORX®

The optimal TRILOBULAR® thread rolling screw for metal and light alloy assemblies.

TAPTITE II® thread rolling screw pan head with conical washer, provides the highest performance when screwing into steel, offering great opportunities for cost reduction as it eliminates the need of pre-tap and all associated costs.

Apart from the references available in stock, we produce customized screws to fit your exact requirements.

taptite-ii-tt22t

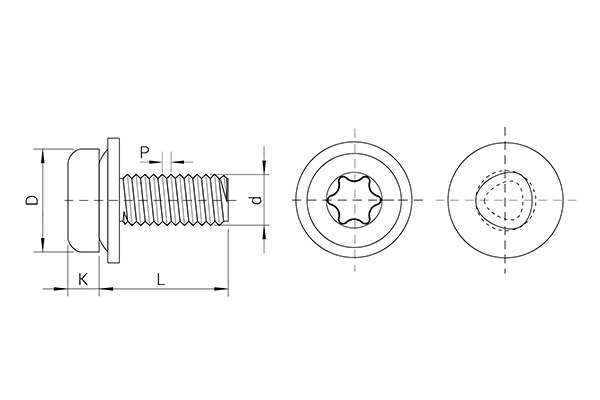

taptite-ii-tt22t-screw-drawing
taptite-ii-tt22t
taptite-ii-tt22t-screw-drawing
Reference
38TT22T 3.0 8 6.00 TORX® T10
boss-design-metal

In order to ensure a safe installation and stable clamping force, it's relevant to pay attention to the boss design. The recommended dimensions for core hole diameter and length of engagement are available at Design Guidelines.

Go to Design Guidelines

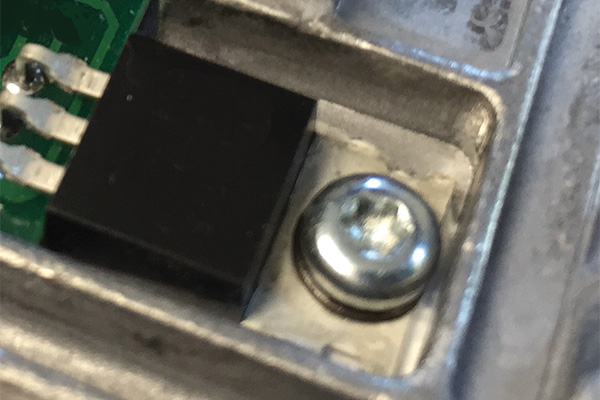

tt22t-screw-application

TAPTITE II® with conical washer are recommended for the assembly of Printed Circuit Boards (PCBs) on metal housings. The advantages of the conical washer are:  Increases the elasticity of the assembly in applications subjected to axial loads. Prevents damage on the PCB during assembly.
